Snowflake SQL GUI Builder

ClickHouse is an open-source column-oriented DBMS for online analytical processing. Pulse is a free SQL Application builder for databases including Snowflake. It allows creating real-time updating charts/tables and linking them interactively. It works on every operating system, with every database including Snowflake.

Start Snowflake

As an example of starting Snowflake:

Go to snowflake
Create a new project and database.

Get Connection Details

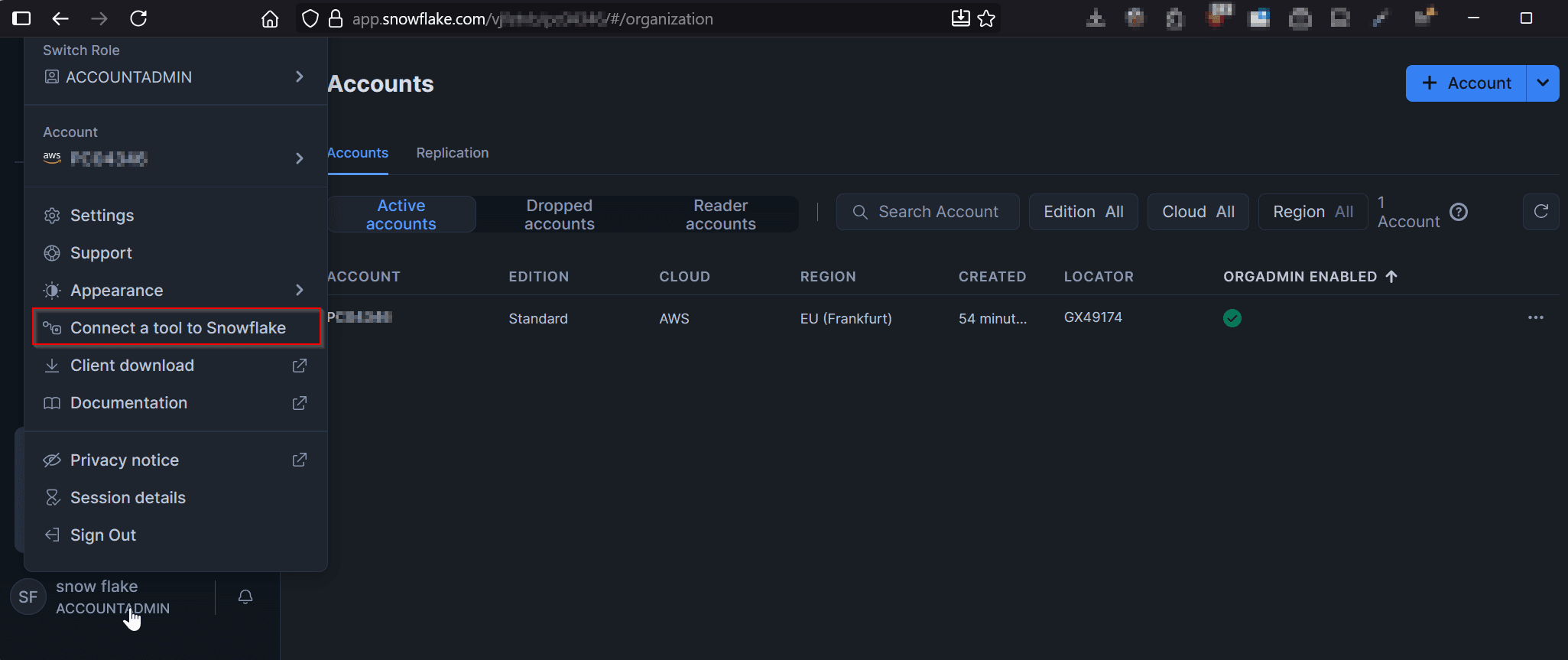

Click your account name at the bottom and then "Connect a tool".

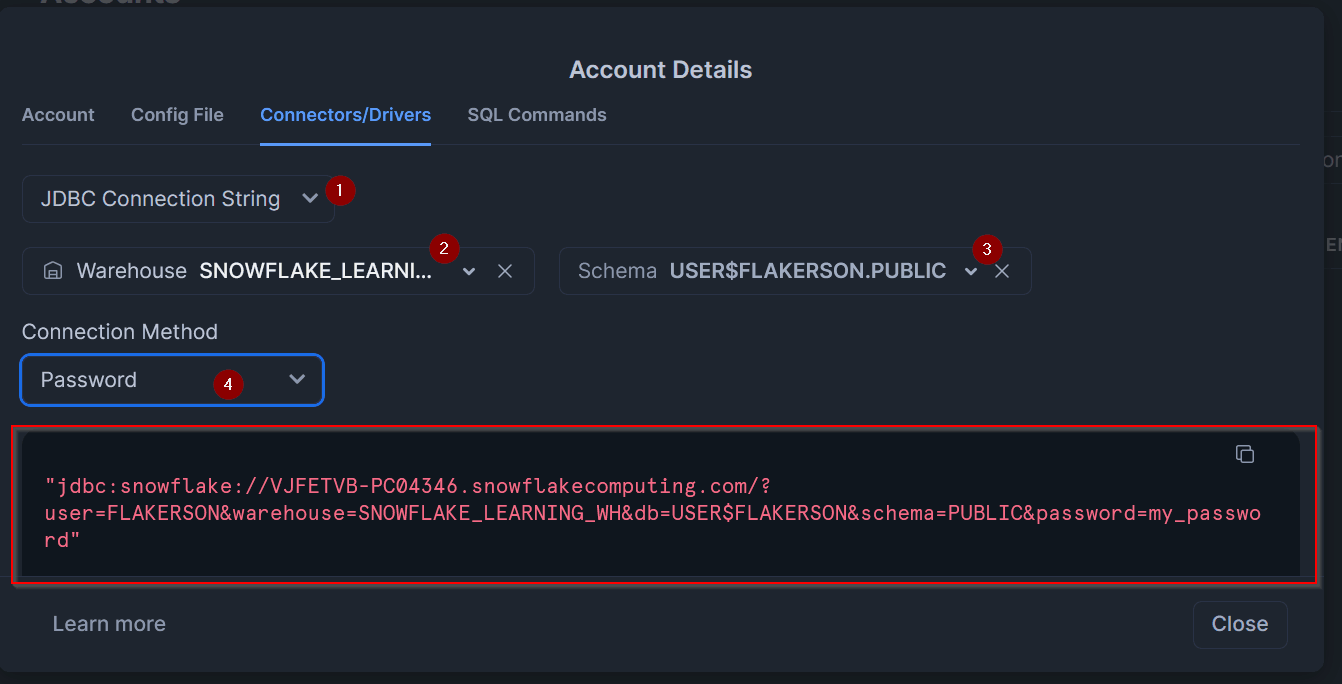

Select the relvant details on the dropdowns and then copy the JDBC URL. Note the URL will not contain your password you will need to fill it in.

Create QStudio Connections

Connecting to a Server

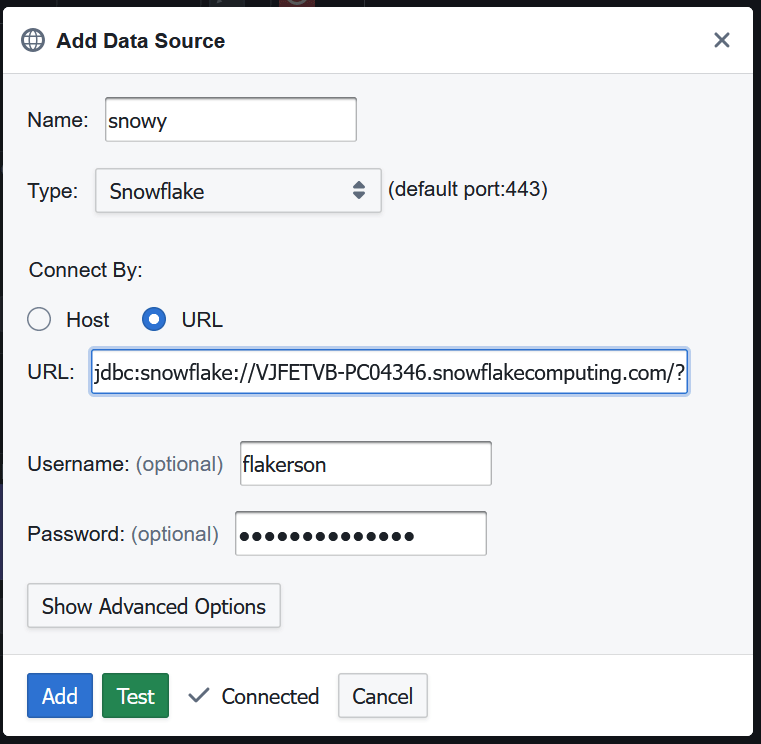

When you first open QStudio click on the menu options Server->Add Server or on the add server button on the toolbar.
Then set the details:

Server Type: Snowflake
Connect By: URL
URL: jdbc:snowflake://VJFETVB-PC04346.snowflakecomputing.com/?user=FLAKERSON&warehouse=COMPUTE_WH&db=USER$FLAKERSON&schema=PUBLIC&password=my_password
Username: USER
Password: PASSWORD
Click Add

Note, I also had to complete the username and password boxes to get it to work. The first time you will also see a popup as QStudio has to download the driver.

Sending Queries

Copy paste the below code into the SQL editor. Then highlight everything and press Ctrl + e to run that code.

Create a Table


CREATE TABLE orders (
	order_id INT IDENTITY (1, 1) PRIMARY KEY,
	customer_id INT NULL,
	order_status tinyint NOT NULL,
	-- Order status: 1 = Pending; 2 = Processing; 3 = Rejected; 4 = Completed
	order_date DATE NOT NULL,
	required_date DATE NOT NULL,
	shipped_date DATE,
	store_id INT NULL,
	staff_id INT NULL
);


INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(1,259,4,'2016-01-01','2016-01-03','2016-01-03',1,2);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(2,1212,4,'2016-01-01','2016-01-04','2016-01-03',2,6);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(3,523,4,'2016-01-02','2016-01-05','2016-01-03',2,7);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(4,175,4,'2016-01-03','2016-01-04','2016-01-05',1,3);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(5,1324,4,'2016-01-03','2016-01-06','2016-01-06',2,6);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(6,94,4,'2016-01-04','2016-01-07','2016-01-05',2,6);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(7,324,4,'2016-01-04','2016-01-07','2016-01-05',2,6);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(8,1204,4,'2016-01-04','2016-01-05','2016-01-05',2,7);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(9,60,4,'2016-01-05','2016-01-08','2016-01-08',1,2);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(10,442,4,'2016-01-05','2016-01-06','2016-01-06',2,6);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(11,1326,4,'2016-01-05','2016-01-08','2016-01-07',2,7);
INSERT INTO orders(order_id, customer_id, order_status, order_date, required_date, shipped_date, store_id,staff_id) VALUES(12,91,4,'2016-01-06','2016-01-08','2016-01-09',1,2);

ALTER SESSION SET JDBC_QUERY_RESULT_FORMAT='JSON';
SELECT * FROM orders;

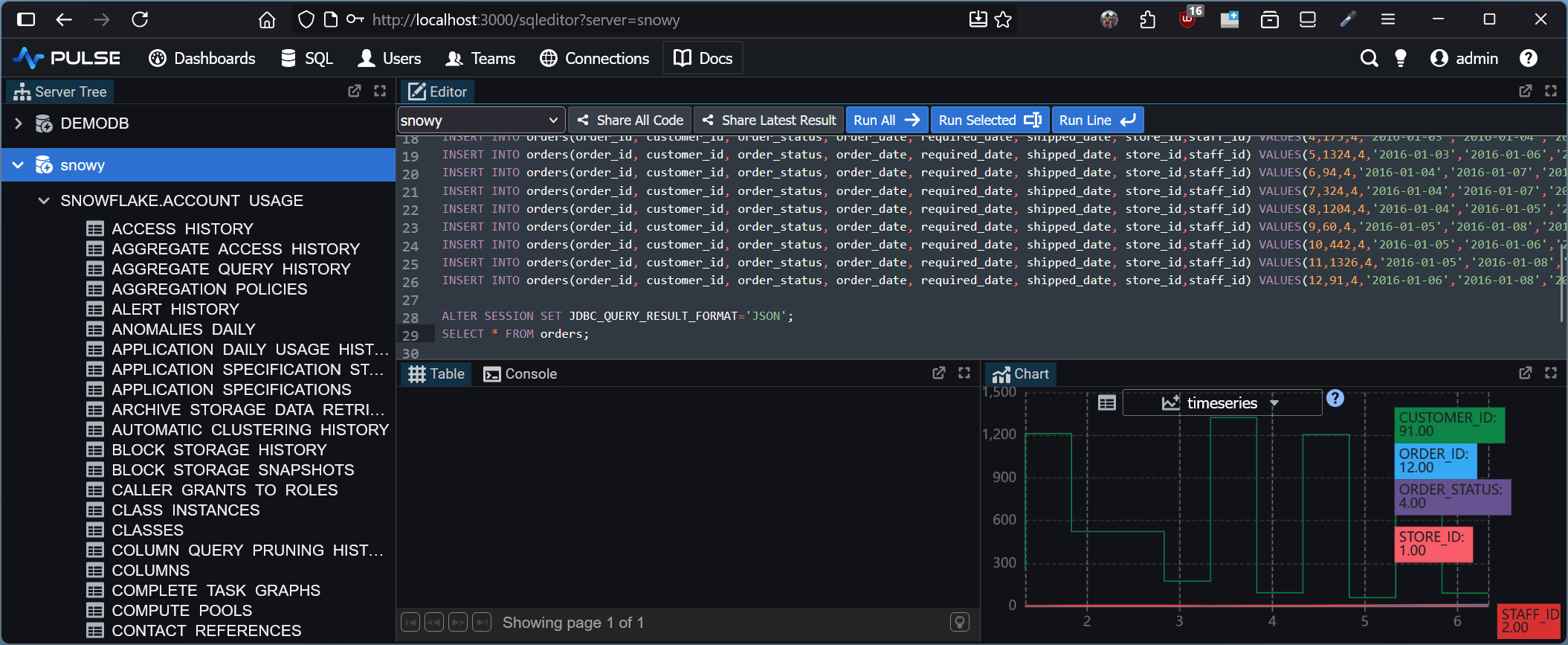

This will update your various results panels:

Notes:

You may get an error "Snowflake JDBC driver internal error: Fail to retrieve row count for first arrow chunk: null " which is due to this bug. Run this query to fix it: ALTER SESSION SET JDBC_QUERY_RESULT_FORMAT='JSON';
You may only be able to run one query at a time.
You may have to restart Pulse after first adding the server to get the driver to load properly.

Well Done!

You have now got Pulse querying your database successfully. Next we recommend you try our Pulse tutorials to help you learn how to build an interactive data application.
