Node.js API

Connect Node.js to PeachQ with jkdb, a zero-dependency q client with a Promise API. Three short scripts and one HTML page cover the common jobs: a feed handler streams trades into a PeachQ table, a query reads a live summary back as JavaScript objects, and a relay subscribes to updates and pushes each batch to a browser page that draws a price chart per symbol and a scrolling trade tape.

Clients

Both clients speak q IPC from Node.js to a separate PeachQ process.

Client	API	When to use it
jkdb 1.4.0 (Apache-2.0)	Promises, upd events for subscriptions, typed arrays for sending tables	Start here for a new project. Used by this article.
node-q 2.7.0 (MIT)	Callbacks, typed values via wrappers such as nodeq.short(1) and nodeq.shorts([1, 2])	Existing node-q code, or when you need node-q's wider set of sendable types. A development dependency of KX's VS Code extension.

Add jkdb to your own project with npm install jkdb. Both clients' test suites were run against PeachQ; see Tested against PeachQ.

Run it

Use Linux x86-64, Bash, curl, tar, unzip and Node.js 20 or newer with npm. The same scripts run on Windows and macOS once PeachQ is downloaded for that platform. Start in a fresh directory. The PeachQ server runs in one terminal; the Node.js scripts run in another.

Terminal 1: download PeachQ and the examples, then start the server:

mkdir peachq-nodejs-api && cd peachq-nodejs-api
mkdir peachq
curl -fL https://peachq.org/download/peachq-linux-x64.tar.gz | tar -xz -C peachq
curl -fLO https://peachq.org/docs/interfaces/examples/nodejs-api-examples.zip
curl -fLO https://peachq.org/docs/interfaces/examples/nodejs-api-server.q
./peachq/q nodejs-api-server.q -p 5003

Terminal 2: stream trades, query them, then relay updates to a browser:

cd peachq-nodejs-api
unzip -q nodejs-api-examples.zip && cd nodejs-api-examples
npm install
node feed.mjs > feed.log &
node query.mjs
node relay.mjs

Open http://localhost:3000 in a browser. The feed handler writes its progress to feed.log; watch it with tail -f feed.log. To stop, run kill %1 to end the feed handler, press Ctrl+C to stop the relay, and press Ctrl+C in terminal 1 to stop the server.

The examples zip contains package.json, which pins jkdb 1.4.0 and ws 8.22.0, the three scripts, the HTML page and a short README. The server script creates the trade table, a minimal publisher and handlers that print each connection and query.

Query

query.mjs connects, runs one query and prints the result with the rows helper defined under Tables arrive as columns. The shipped script reads the port from the PEACHQ_PORT environment variable, defaulting to 5003:

import { QConnection } from 'jkdb';

const q = new QConnection({ host: 'localhost', port: 5003 });
await q.connectAsync();

const summary = await q.syncAsync('0!select trades:count i,sum size by sym from trade');
console.table(rows(summary));

┌─────────┬────────┬────────┬───────┐
│ (index) │ sym    │ trades │ size  │
├─────────┼────────┼────────┼───────┤
│ 0       │ 'A'    │ 87     │ 43988 │
│ 1       │ 'GM'   │ 70     │ 33584 │
│ 2       │ 'GOOG' │ 80     │ 36951 │
│ 3       │ 'KX'   │ 103    │ 52631 │
└─────────┴────────┴────────┴───────┘

The numbers differ on every run because the feed generates random trades.

syncAsync sends a message and resolves with the reply. If q signals an error, the promise rejects with an Error whose message is the q error, for example type for 1+a. CallcloseAsync()` when you have finished with a connection.

Tables arrive as columns

jkdb returns a table as an object with one array per column, plus a Symbol.for('meta') property holding the column names (c) and type letters (t), in the order q defined them. console.log prints the summary as:

{
  sym: [ 'A', 'GM', 'GOOG', 'KX' ],
  trades: [ 87, 70, 80, 103 ],
  size: [ 43988, 33584, 36951, 52631 ],
  [Symbol(meta)]: { c: [ 'sym', 'trades', 'size' ], t: [ 's', 'j', 'i' ] }
}

Columns are the natural shape for charts and aggregations. For console.table, templates and JSON responses, turn them into one object per row:

const rows = table => {
  const { c: columns } = table[Symbol.for('meta')];
  return table[columns[0]].map((_, i) => Object.fromEntries(columns.map(name => [name, table[name][i]])));
};

A query grouped with by, such as select trades:count i by sym from trade, returns a keyed table. jkdb merges the key and value columns into one object and lists the key names under Symbol.for('keys'). The 0! prefix in the query above unkeys the result on the server instead, which keeps the client code simple.

Call a function with arguments

Pass an array whose first element is q code and whose remaining elements are the arguments. The code is evaluated on the server and applied to the arguments, so a lambda works as a parameterised query:

const recent = await q.syncAsync(['{[s;n] n#select time,price,size from trade where sym=`$s}', 'GOOG', -3n]);
console.table(rows(recent));

┌─────────┬──────────────────────────┬────────┬──────┐
│ (index) │ time                     │ price  │ size │
├─────────┼──────────────────────────┼────────┼──────┤
│ 0       │ 2026-10-08T12:52:34.402Z │ 148.49 │ 429  │
│ 1       │ 2026-10-08T12:52:34.903Z │ 148.23 │ 344  │
│ 2       │ 2026-10-08T12:52:35.912Z │ 147.93 │ 267  │
└─────────┴──────────────────────────┴────────┴──────┘

Two details matter here. A JavaScript string is sent as a q char list, not a symbol, so the lambda casts it with `$s before comparing it with the symbol column. A JavaScript number is sent as a q float, which # rejects as a count; the BigInt -3n is sent as a q long, so -3# returns the last three rows.

Values arrive as JavaScript types

q type	JavaScript value	Null	Infinities
boolean	true or false
guid	32-character hex string	"00000000000000000000000000000000"
byte, short, int	number	NaN (byte has no null)	Infinity, -Infinity
long	number, or BigInt with useBigInt: true	NaN	Infinity, -Infinity
real, float	number	NaN	Infinity, -Infinity
char, char list	string	" "
symbol	string	""
timestamp	Date to the millisecond, or an ISO string with nine fractional digits with includeNanosecond: true	null ("" with includeNanosecond)	null ("" with includeNanosecond)
date, datetime	Date	null	null
month, timespan, minute, second, time	string in q notation, such as "2001.02m", "1D02:03:04.005006007", "01:02", "01:02:03" and "01:02:03.004"	null	null
general list	array
dictionary	object; non-symbol keys are converted to strings
table	object of column arrays with Symbol.for('meta')
keyed table	as a table, plus Symbol.for('keys')
lambda	string holding the source

Every array carries its q type letter in Symbol.for('kType'), so summary.trades[Symbol.for('kType')] is 'j'.

Two constructor options change the mapping. A q long holds 64 bits, but a JavaScript number is exact only up to 2^53, so 9007199254740993 arrives as 9007199254740992 by default. With useBigInt: true, longs arrive as BigInt values and syncAsync('9007199254740993') resolves to 9007199254740993n. A Date holds milliseconds, so the default mapping truncates 2001.02.03D04:05:06.123456789 to .123. With includeNanosecond: true, timestamps arrive as the string "2001-02-03T04:05:06.123456789", which you can parse yourself.

Subscribe and render

A subscriber registers with a publisher once, then receives every new batch of rows as an asynchronous message. The server script contains a tiny publisher: .u.sub records the caller's handle, and .u.upd inserts each batch into the table and forwards it to every subscriber.

trade:([]time:`timestamp$();sym:`symbol$();price:`float$();size:`int$();stop:`boolean$();cond:`char$();ex:`char$())
subs:`int$()
.u.sub:{[t;s] subs,:.z.w; 0#value t}
.u.upd:{[t;x] t insert x; {neg[x] (`upd;y;z)}[;t;x] each subs;}

.z.po:{-1 "open  handle ",string x;}
.z.pc:{subs::subs except x; -1 "close handle ",string x;}
.z.pg:{-1 "query ",$[10h=type x;x;-3!x]; value x}

relay.mjs subscribes with one synchronous call. jkdb emits an upd event for every asynchronous message whose first element is the symbol upd, which is the convention a kdb+ tickerplant follows too. Each event carries the q list (`upd;`trade;table), destructured below into the table name and the new rows:

const q = new QConnection({ host: 'localhost', port: 5003 });
q.on('upd', ([, table, data]) => {
  const message = JSON.stringify({ table, rows: rows(data) });
  for (const browser of browsers.clients) browser.send(message);
  console.log(`${table}: ${data.sym.length} rows to ${browsers.clients.size} browser(s)`);
});
await q.connectAsync();
await q.syncAsync('.u.sub[`trade;`]');

The same process serves index.html over HTTP and accepts WebSocket connections with the ws package, so the page and its data share one port:

const page = await readFile(new URL('./index.html', import.meta.url));
const web = createServer((request, response) => {
  response.writeHead(200, { 'content-type': 'text/html; charset=utf-8' });
  response.end(page);
});
const browsers = new WebSocketServer({ server: web });
web.listen(3000);

JSON.stringify turns each Date into an ISO string and leaves numbers, strings and booleans as they are, so the browser receives plain JSON rows with no q types to decode. The relay prints Subscribed to trade; open http://localhost:3000 once it is listening, then one line per batch while the feed handler runs:

trade: 5 rows to 1 browser(s)
trade: 5 rows to 1 browser(s)
trade: 7 rows to 1 browser(s)

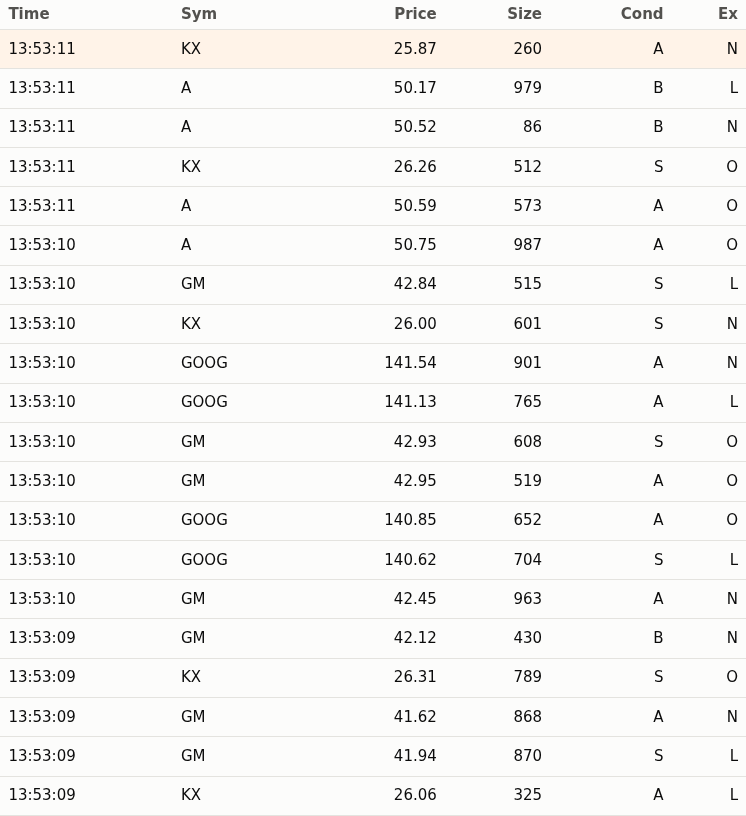

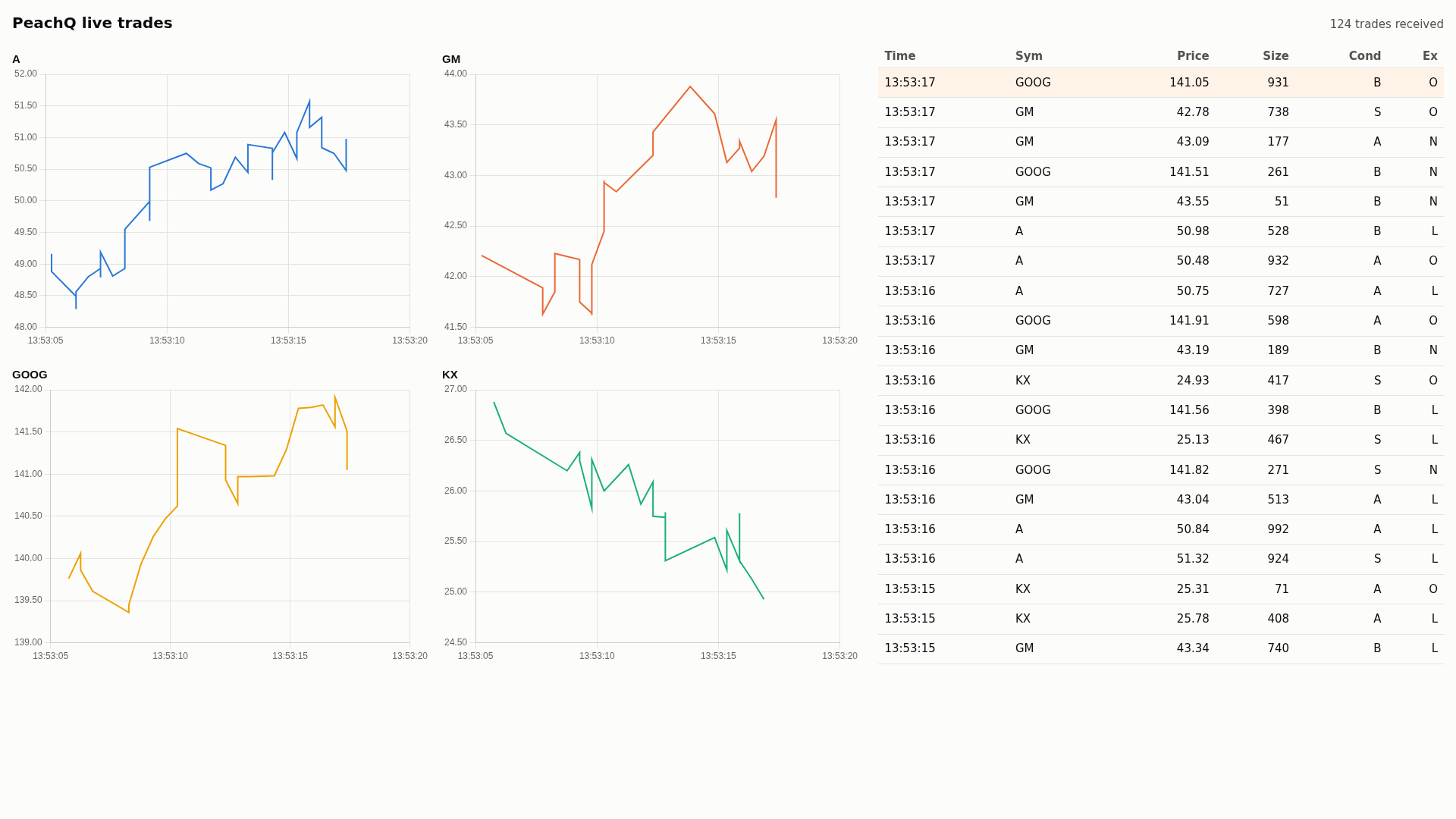

The page keeps one Chart.js line chart per symbol, holding the latest 200 points, and a table of the latest twenty trades. For every row in a message it appends a point to that symbol's chart, creating the chart the first time a symbol appears, and prepends a row to the tape:

socket.onmessage = event => {
  const { rows } = JSON.parse(event.data);
  for (const trade of rows) { plot(trade); tick(trade); }
  received += rows.length;
  status.textContent = `${received} trades received`;
  for (const chart of charts.values()) chart.update('none');
};

Chart.js 4.5.0 (MIT) loads from a pinned jsDelivr URL in index.html; the page needs internet access for that one script. Everything else is served by relay.mjs.

Send data with a feed handler

A feed handler converts data from an external source into q objects and sends them to q. feed.mjs generates between one and ten random trades every half second and sends each batch with asyn, which writes the message and returns without waiting for a reply:

setInterval(() => {
  const trades = batch();
  q.asyn(['.u.upd[`trade]', trades]);
  console.log(`Sent ${trades.sym.length} trades`);
}, 500);

Sent 8 trades
Sent 7 trades
Sent 4 trades

The first element, .u.upd[`trade], is q code that evaluates to a projection of .u.upd with the table name fixed, and the batch becomes its remaining argument. A JavaScript string would be sent as a char list, not a symbol, so naming the table inside the q code is the simplest way to pass `trade.

batch() builds the table as one array per column. jkdb sends a plain array as a general list and a plain number as a float, so each column names its q type in Symbol.for('kType'), and the table names its columns and types in Symbol.for('meta'):

const typed = (values, type) => Object.assign(values, { [Symbol.for('kType')]: type });

const trades = {
  time: typed(sym.map(() => new Date()), 'p'),
  sym: typed(sym, 's'),
  price: typed(price, 'f'),
  size: typed(sym.map(() => 1 + Math.floor(Math.random() * 1000)), 'i'),
  stop: typed(sym.map(() => Math.random() < .1), 'b'),
  cond: sym.map(() => pick('ABS')).join(''),
  ex: sym.map(() => pick('LNO')).join(''),
};
trades[Symbol.for('meta')] = { c: Object.keys(trades), t: ['p', 's', 'f', 'i', 'b', 'c', 'c'] };

JavaScript column	kType	q column
Date[]	'p', 'd' or 'z'	timestamp, date or datetime; null sends the null
string[]	's'	symbol
number[]	'f'	float
number[]	'i' or 'j'	int or long; NaN or null sends the null, Infinity the infinity; BigInt values are accepted for 'j'
boolean[]	'b'	boolean
string[]	'g'	guid, from 32-character hex strings
string	'c'	char, one character per row

These match the empty trade table in the server script. A char column is a single string, not an array of characters. The time column is a timestamp because jkdb 1.4.0 sends Date values only as timestamps, dates or datetimes; it cannot send q time, minute, second, timespan or month values, nor byte, short or real columns.

In terminal 1, count trade grows each time you run it. asyn suits a feed: the handler does not wait for q to process each batch, but it also receives no error. If a batch does not match the table's columns, the insert fails on the server and the Node.js program carries on. Check the table in q while developing a feed handler, or send the first batches with syncAsync so a mistake rejects the promise.

Watch the server

The server script replaces three q event handlers so that it prints what the Node.js programs do. .z.po runs when a connection opens, .z.pc when it closes, and .z.pg for each synchronous message, which it prints before evaluating. Running the commands in Run it, then stopping the relay and the feed handler, prints:

open  handle 5
open  handle 6
query 0!select trades:count i,sum size by sym from trade
query ("{[s;n] n#select time,price,size from trade where sym=`$s}";"GOOG";-3)
close handle 6
open  handle 6
query .u.sub[`trade;`]
close handle 5
close handle 6

Handle 5 is the feed handler, which stays connected until it is stopped. The query script and the relay each open their own connection; the relay is handle 6 until it is stopped. The function call is printed as the list the client sent: the lambda and "GOOG" as char lists, and -3 as a long.

The feed handler's .u.upd messages are asynchronous, so .z.pg does not see them. See Observe connection and message handlers for all four IPC handlers.

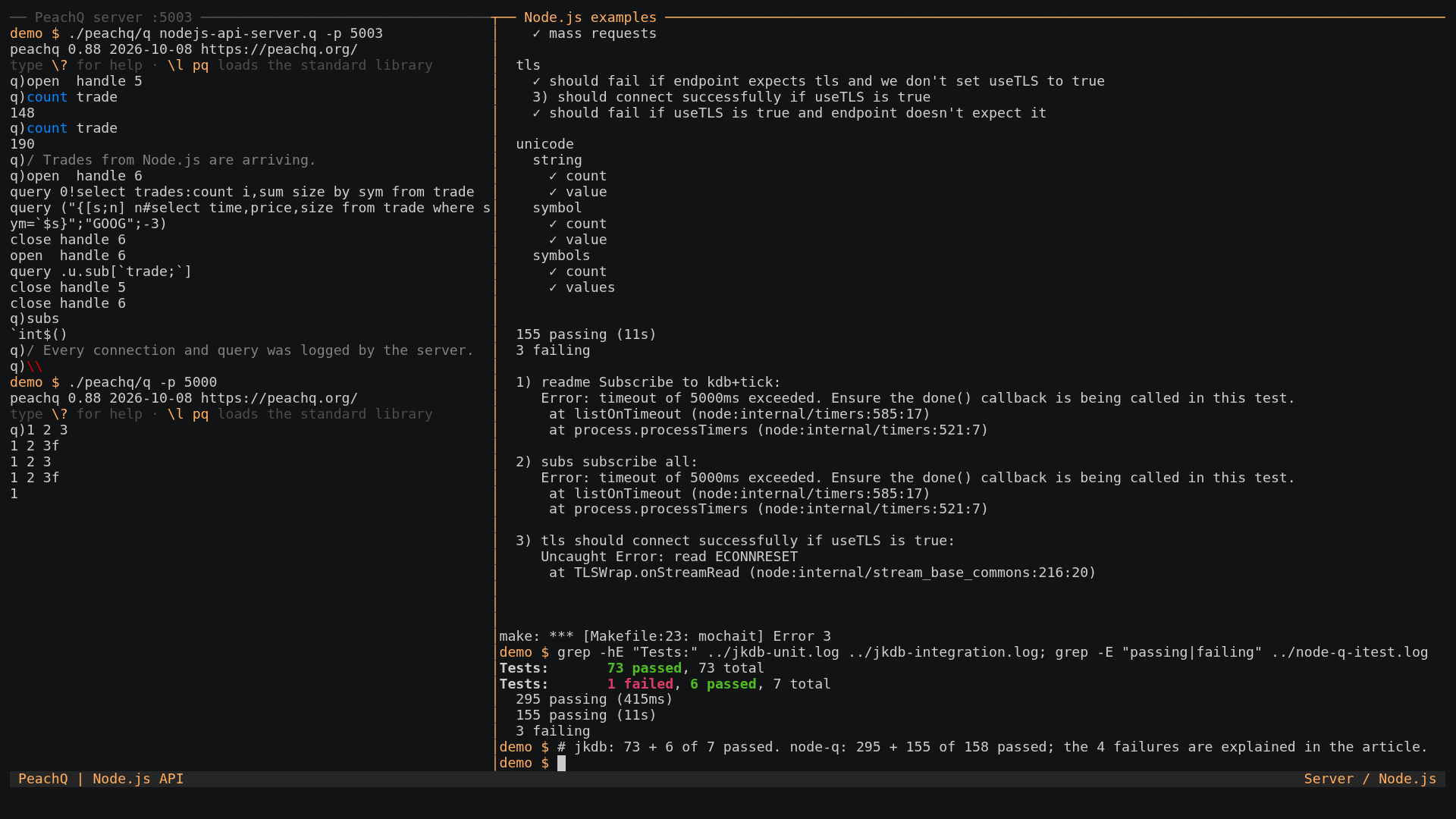

Tested against PeachQ

Both clients ship test suites. They were run unchanged against the PeachQ release used by this article, with each failure traced to its cause; the recording ends with these runs.

Suite	What it covers	Result
jkdb npm test	73 offline tests that serialise and deserialise IPC bytes for every supported type, including compressed messages	73 passed
jkdb npm run integration	7 tests against a q started as q -p 1999: synchronous queries, replies to messages the server sends, the deferred-response (-30!) API, .z.pw credential checks and a dropped connection	6 passed, 1 failed
node-q make itest	295 offline unit tests, then 158 tests against q on ports 5000 and 6000: synchronous and asynchronous requests, every type in both directions, keyed and flipped tables, nanosecond timestamps, unicode, compressed messages, subscriptions through kdb-tick's u.q, and TLS	295 passed; 155 passed, 3 failed

The four failures:

• jkdb lost connection while querying starts a second q and connects to it in the same tick. PeachQ takes 0.1 to 0.2 seconds to open its port, so the connection is refused. The same test passes when the client waits for the port to open.
• node-q readme Subscribe to kdb+tick and subs subscribe all run after issue18.js has created a table without a sym column. The subscription .u.sub[`;`] then fails inside u.q on that table before reaching trade. Both tests pass on PeachQ when run on their own.
• node-q tls should connect successfully if useTLS is true fails because release 0.88 of PeachQ accepts -E 2 but does not complete a TLS handshake.

A separate round trip of every q type through jkdb, including nulls, infinities, nested lists, dictionaries, keyed tables, GUIDs, every temporal type and unicode strings, produced the same results from PeachQ on loopback and on a network address, where replies over 2000 bytes arrived compressed and were decompressed by jkdb. The differences found are all jkdb's own mapping choices, listed in the caveats below.

Summary

You have streamed trades into PeachQ from Node.js, queried them back as JavaScript objects, and relayed live updates to a browser chart.

Caveats found while testing jkdb 1.4.0 against PeachQ:

• On the server, .z.u is the user ID the client sent when it connected. PeachQ sets .z.u only when the login string contains a colon. jkdb always sends user:password, with user defaulting to the USER environment variable, so .z.u is set for jkdb connections. Pass user and password to QConnection to control it.
• jkdb cannot send q symbol or guid atoms, or byte, short, real, month, timespan, minute, second or time values. Cast inside q code, as the examples do, or choose timestamp, date, long, int and float columns for tables you send.
• Symbols containing non-ASCII characters are corrupted when sent by jkdb, because it counts UTF-16 units rather than bytes. Receiving them works.
• Temporal infinities such as 0Wp arrive as null, the same as nulls. Timestamps before 2000 with a fractional millisecond are rounded towards 2000 by one millisecond.
• A sorted dictionary (`s# on a dictionary, type 127) and derived functions such as +/ (types 106 to 111) cannot be received; jkdb rejects the message with UNSUPPORTED_K_TYPE.
• Longs beyond 2^53 need useBigInt: true; timestamps beyond the millisecond need includeNanosecond: true, after which they arrive as strings.

Report problems at PeachQ issues.
