Column Pattern Formatting

You can configure the appearance of a column by either:

1. Defining a column pattern.
2. Setting column options within the component editor.
3. Adding an _SD_FORMATTER within the column name.

Below we detail how column pattern formatters allow configuring multiple columns at once using wildcard matching.

Configuring Multiple Columns using Patterns

You may have many columns with similar names, or dynamic columns that only appear after a form or query change. Column patterns allow you to match these columns using simple wildcard rules and apply formatting to all of them at once.

Patterns use wildcard matching (not raw JavaScript regular expressions).
The asterisk (*) matches any number of characters, and matching is applied to the entire column name.

How to Create a Column Pattern

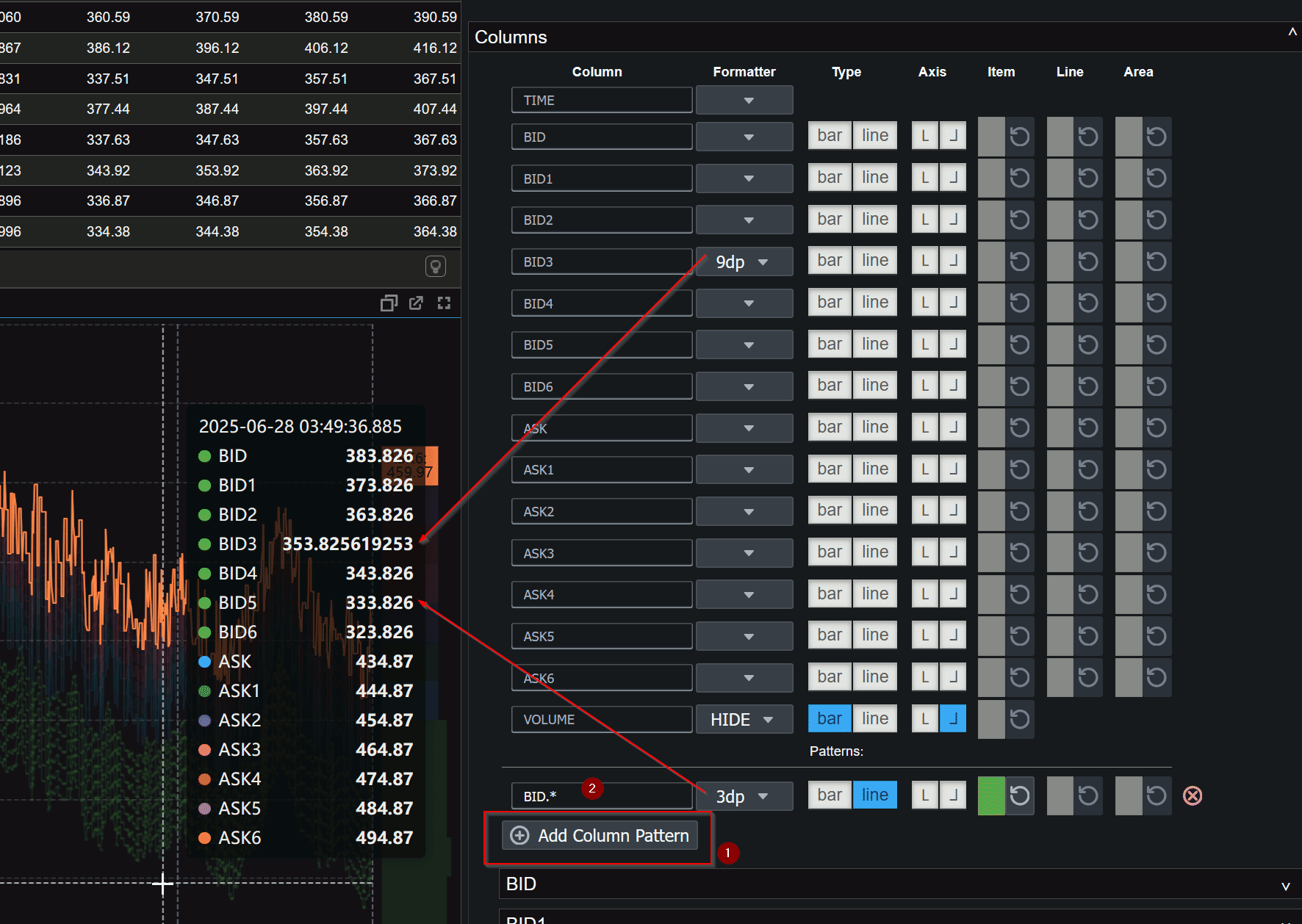

1. Within the component editor, click Add Column Pattern.
2. Enter a column name pattern using wildcards (*).
3. In the pattern editor or collapsible panel, configure the formatting options. All matching columns will automatically inherit these settings.

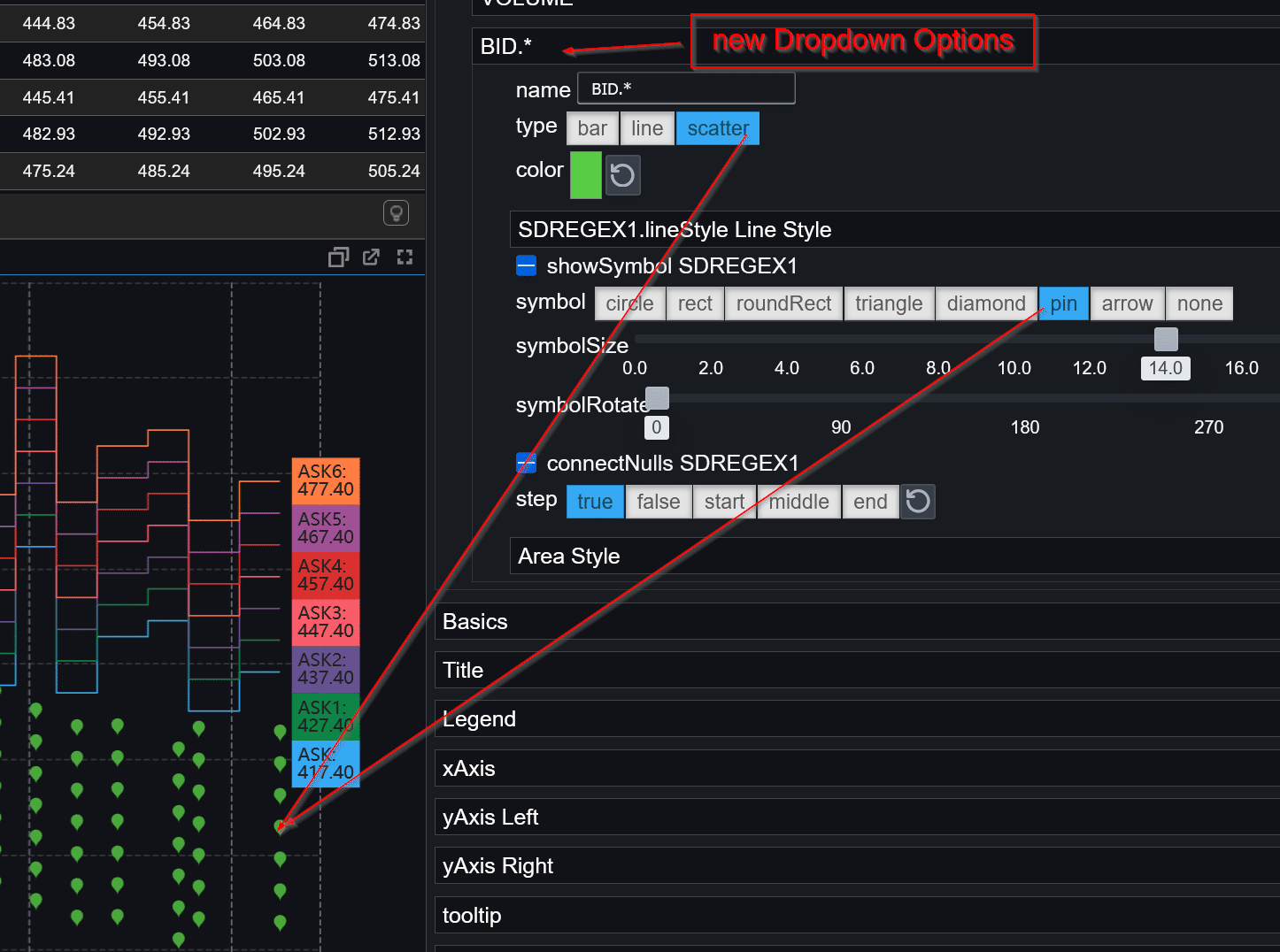

When you create a pattern, a new expandable section appears for configuring all matching columns.

Wildcard Pattern Examples

Pattern	Matches	Description
BID*	BID, BID1, BID2	All columns starting with BID
*BID*	MY_BID_1, YOUR_BID_2	All columns containing BID
*3	BID3, ASK3, MID3	All columns ending with 3
ASK	ASK	Exact column name match
*	All columns	Apply formatting to every column in the table

Regex Patterns (Advanced)

By default, column patterns use simple wildcard matching. For advanced use cases, you may explicitly opt in to full JavaScript regular expressions by prefixing the pattern with regex:.

Regex patterns are powerful but should be used with care. They are case-sensitive and are applied exactly as written. Invalid regular expressions will not be applied.

Regex Examples

Pattern	Matches	Description
regex:^BID\d+$	BID1, BID2, BID3	All BID columns followed by a number
regex:^ASK.*	ASK, ASK1, ASK_PRICE	All columns starting with ASK
regex:.*_BID_.*	MY_BID_1, YOUR_BID_2	Columns containing _BID_
regex:^(BID|ASK)$	BID, ASK	Exact match of multiple column names

Note: When using regex:, the pattern is treated as a raw JavaScript regular expression. Wildcard rules (*) are not applied, and special characters must be properly escaped.

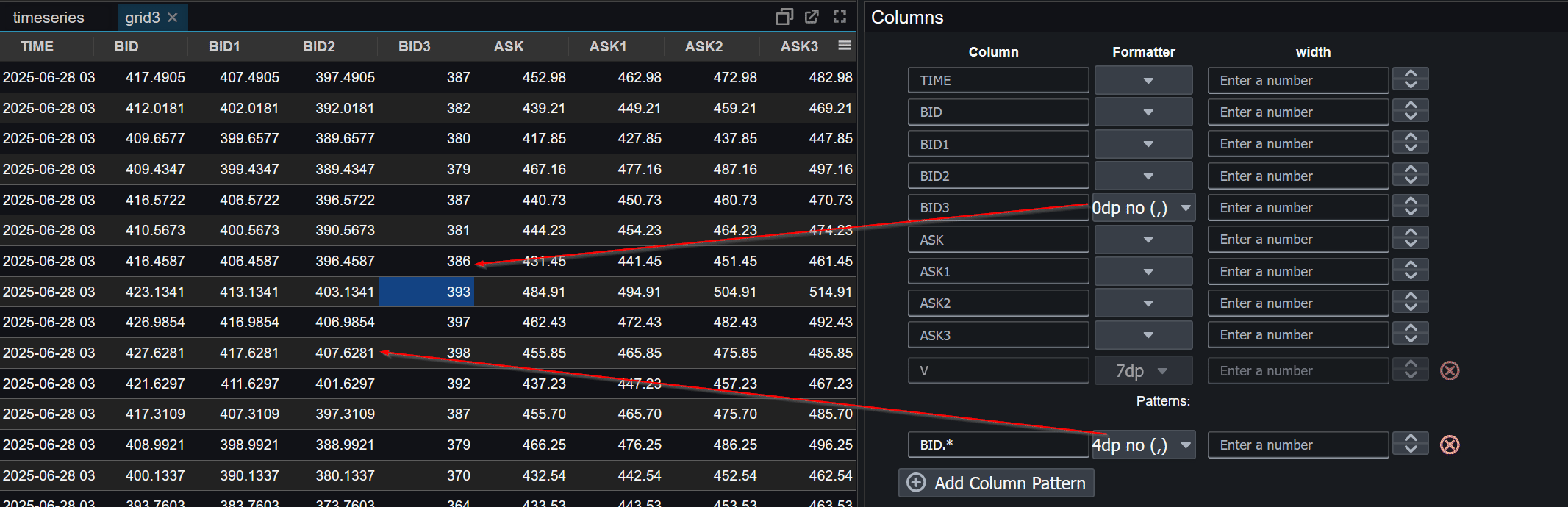

Configure Multiple Table Columns

Notice that a column-specific configuration always overrides a pattern-based configuration.

Example Code Used

Run the following query against the built-in DEMODB database to recreate the example shown above.

SELECT TIME, BID, BID-10 AS BID1, BID-20 AS BID2, BID-30 AS BID3, ASK, ASK+10 AS ASK1, ASK+20 AS ASK2, ASK+30 AS ASK3, BID AS MY_BID_1, BID AS YOUR_BID_2, BID AS MID3 FROM quote WHERE NAME='NFLX' AND TIME > timestampadd(minute, -20, date_trunc('minute', CURRENT_TIMESTAMP())) ORDER BY TIME ASC;
